Development Kits

AcSiP has provided hardware development resource and tool to help clients in integrating RF module with matched antenna into their IoT product with mainly wireless connectivity , referring design of multi power source domain, configuring for digital and anglog peripherals alternative setting according to the essential reference design from AcSiP for every individual product.

The development kit has own software resources to build default image of binary firmware and users could implement private application according to examples of the platform then test its functionality,peripherals control,RF performance, efficacy of consumption and so on.

IoT-LoRa      IoT-WiFi

Model Solution SIZE/PACKAGE Product description Product detail
EK-AI7933CLD KIT WiFi6 2.4/5G + BT 5 + HiFi4 DSP EVB 2.4/5G antenna New Mediatek Filogic 130 WiFi6/BT5 combo SoC development kit could help user to upgrade IoT feature as AIoT application according to this security base platform. This chip integrates Arm Cortex-M33 MCU, Wi-Fi 6 and Bluetooth 5.2 connectivity subsystems, a power management unit (PMU) and optional audio DSP. LINK
EK-AI7931LD KIT WiFi6 2.4/5G + BT 5 EVB 2.4/5G antenna New Mediatek Filogic 130 WiFi6/BT5 combo SoC development kit could help user to upgrade IoT feature as AIoT application according to this security base platform. This chip integrates Arm Cortex-M33 MCU, Wi-Fi 6 and Bluetooth 5.2 connectivity subsystems, a power management unit (PMU) . LINK
EK-7933CT KIT WiFi6 2.4/5G + BT 5 + HiFi4 DSP EVB 2.4/5G antenna
New Mediatek Filogic 130 WiFi6/BT5 combo SoC development kit could help user to upgrade IoT feature as AIoT application according to this security base platform. This chip integrates Arm Cortex-M33 MCU, Wi-Fi 6 and Bluetooth 5.2 connectivity subsystems, a power management unit (PMU) and optional audio DSP. LINK
EK-AI7931HD KIT WiFi6 2.4/5G + BT 5 EVB 2.4/5G antenna
New Mediatek Filogic 130 WiFi6/BT5 combo SoC development kit could help user to upgrade IoT feature as AIoT application according to this security base platform. This chip integrates Arm Cortex-M33 MCU, Wi-Fi 6 and Bluetooth 5.2 connectivity subsystems, a power management unit (PMU) . LINK
EK-AI7697HDXB WiFi4 2.4/5G + BT 4.2 EVB The EK-AI7697HD board provides an affordable way for user to try out WiFi Node in IoT applications or new concepts evaluation. The development board uses MT7697DN as a standalone development platform of RTOS to implement samrt home 、building and so on IoT projects. LINK
EK-AI7688H WiFi4 + Ethernet EVB The EK-AI7688H board provides an affordable way for user to try out WiFi Access point in IoT applications or new concepts evaluation. The development board uses MT7688AN as a standalone MPU and supports application development in Python, Node.js and native C programming languages. LINK
EK-ST50HE LoRa SoC SiP EVB
High band antenna
The EK-ST50HE board is a ARM Cortex-M4 with sub-GHz radio integrated +14 dBm power amplifer support from 863-930 MHz for LPWAN applications of LoRaWAN、sigfox. LINK

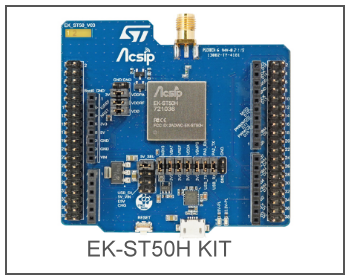

EK-ST50H LoRa SoC SiP EVB
High band antenna
The EK-ST50H board is a ARM Cortex-M4 with sub-GHz radio integrated +21dBm power amplifer support from 863-930 MHz for LPWAN applications of LoRaWAN、sigfox. LINK
EK-ST50L LoRa SoC SiP EVB
Low band antenna
The EK-ST50L board is a ARM Cortex-M4 with sub-GHz radio integrated +21 dBm power amplifer support from 433-510 MHz for LPWAN applications of LoRaWAN. LINK
EK-S76SXB MCU + LoRa SiP EVB
High band antenna
The S76S SiP module integrated Arm Cortex-M0+ MCU with LoRa transceiver for LPWAN IoT Applications.User can develop LoRa/LoRaWAN sensor app to verify its functions by this EVK. LINK
EK-S68F LoRa SiP Transcevier EVB
High band antenna
The AcSiP S68F SiP 2nd Gen LoRa solution as a small transceiver module with TCXO inside and support regions of EU433、CN470 LINK
EK-S62F LoRa SiP Transcevier EVB
High band antenna
The AcSiP S62F SiP 2nd Gen LoRa solution as a small transceiver module with TCXO inside and support regions of EU868、AS923、US915、AU915 LINK
