STMicroelectronics new STM32WL series microcontrollor (ST50H)

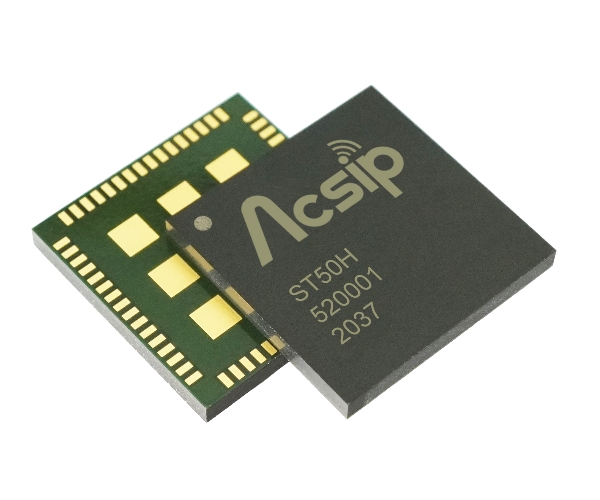

AcSiP has a brand new ST50H System-in-Package module integrating STMicroelectronics STM32WL LoRa SOC, clock sources, RF matching circuit and peripheral circuitry in a compact 12x12x1.3mm(LxWxH) size.

ST50H feature a sub-GHz radio based-on Semtech SX126x to meet the requirements of a wide range of Low-Power Wide Area Network (LPWAN) wireless applications in industrial and consumer Internet-of-Things (IoT).

Thanks to a deep integration, the innovative and open architecture is optimized for LoRaWAN® legacy / proprietary protocols, flexible resource use, power management while offering a better user experience.

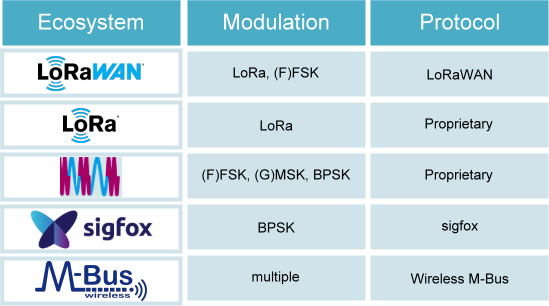

Multiple modulation support

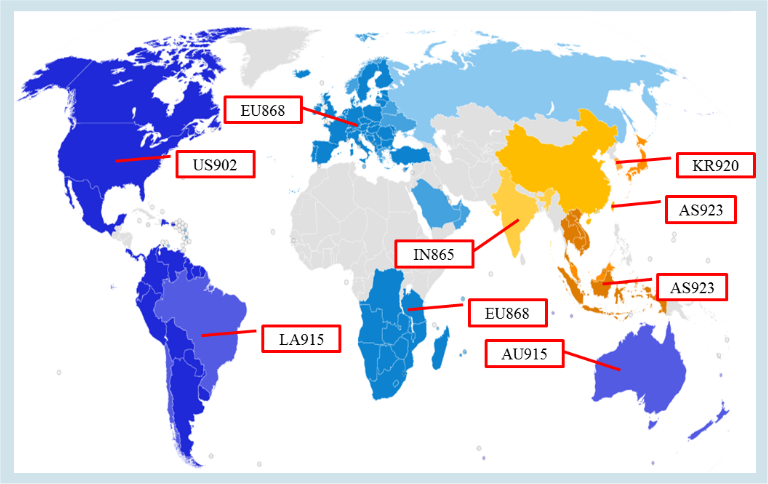

Global regions support (For example - LoRaWAN)

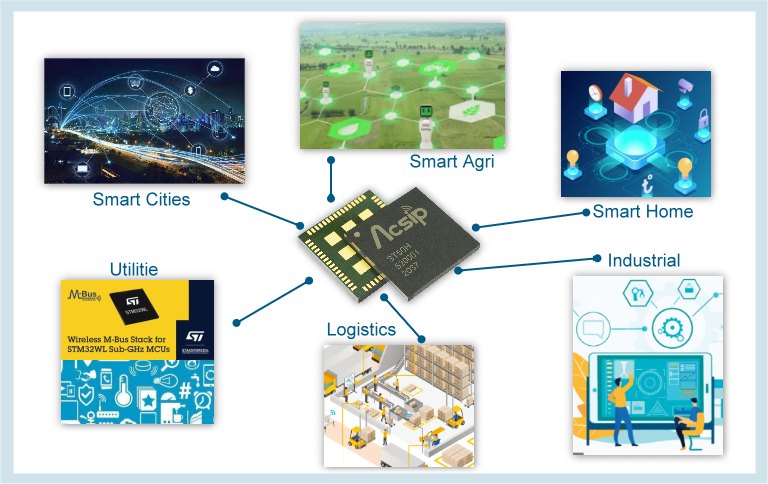

AIoT Applications

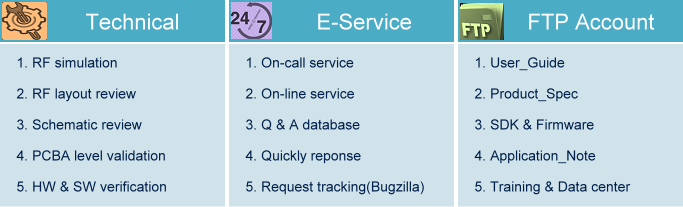

Here are significant benefits for customers when choosing AcSiP ST50H and great technical support to develop IoT applications:

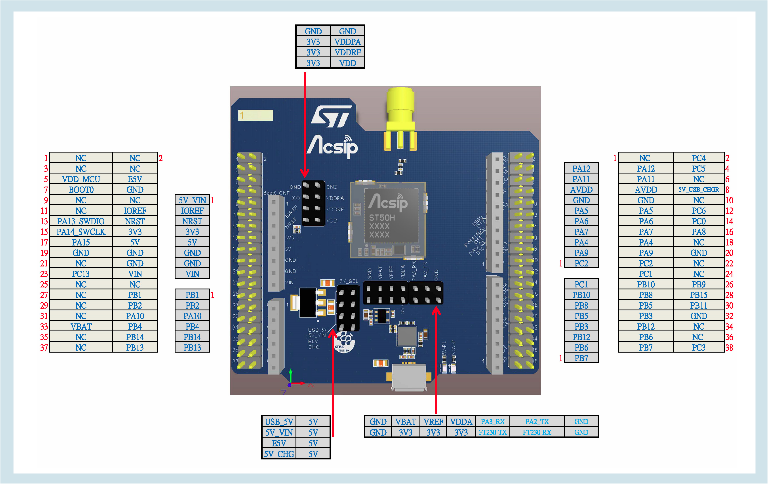

  • Starter Kit is ready for customer’s project verification and development.
  • AcSiP sales and FAE team could provide technical support in HW/SW design relative issues and system integration problems to get good efficiency in POC/MP schedule.
