LoRa_SiP + ANT
7x timers, sub-second RTC
2x Comparators, 2 DMA controller
。 Console Baud-Rate :9600
The ST50H integrates ARM Coretex®-M4 (32-bit RISC core operating at a 48MHz frequency) MCU with LoRa modulation that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The ST50H can achieve a sensitivity of over -136 dBm. The high sensitivity combined with the integrated +22 dBm power amplifier yields industry leading link budget making it optimal for any low data rate application requiring range or robustness. LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
|Part Number||Frequency Range||Spreading Factor||Bandwidth||Effective Bitrate||Est. Sensitivity|
|ST50H||779~928MHz||5~12||7.8~500KHz||LoRa BR: 0.013~17.4bps||-136dBm|
|Kb/s(G)FSK BR:0.6~300kb/s||@125kHz, SF12|
The SiP module will conform to the following pin map (Top View) and recommand footprint (mm)

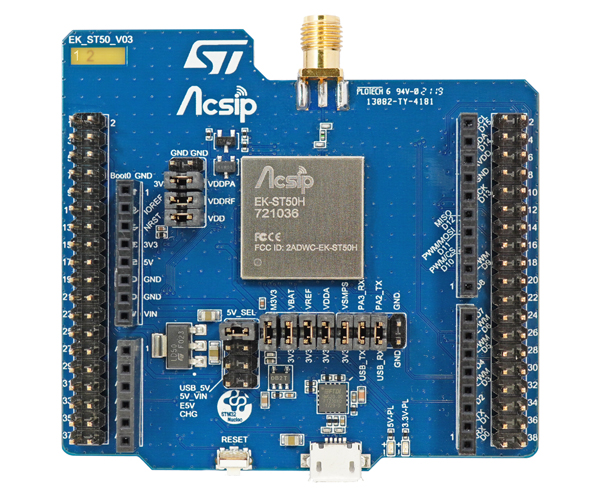

The EK-ST50H board provides an affordable way for user to try out LPWAN IoT applications or new concepts evaluation. It also compliance with STM32WL Necleo-64 board to support ARDUINO Uno V3 connectivity support and the ST morpho headers.
User can download firmware built from SDK via ST-Link to test software flow and debug error according to log shown on termanal tool.
|EK-ST50H||1||Micro USB for Power source and RS232 I/F|
|Antenna (option)||1||High band for EU868, US915, AS923|
|User can configure RS232 terminal tool to control EK-ST50H board for SW validation and application development|
|User guide||EK-ST50 User Guide Ver.C .pdf|
